Launch a Linux Virtual Machine

Launch a Linux Virtual Machine

with Amazon EC2

Amazon Elastic Compute Cloud (EC2) is the Amazon Web Service you use to create and run virtual machines in the cloud. AWS calls these virtual machines ‘instances’. This step-by-step guide will help you successfully launch a Linux virtual machine on Amazon EC2 within our AWS Free Tier.

Did you know? AWS made it even easier to launch a Linux virtual private server. Jumpstart your virtual machine with Amazon Lightsail >>

Manage Your AWS Resources

Sign in to the Console

Step 1: Launch an Amazon EC2 Instance


a. Click here to open the Amazon EC2 console and then click Launch Instance to create and configure your virtual machine.

launch-instance
(click to zoom)

Step 2: Configure your Instance

You are now in the EC2 Launch Instance Wizard, which will help you configure and launch your instance.


a. In this screen, you are shown options to choose an Amazon Machine Image (AMI). AMIs are preconfigured server templates you can use to launch an instance. Each AMI includes an operating system, and can also include applications and application servers.

For this tutorial, find Amazon Linux AMI and click Select.

amazon-linux-ami
(click to zoom)

b. You will now choose an instance type. Instance types comprise of varying combinations of CPU, memory, storage, and networking capacity so you can choose the appropriate mix for your applications. For more information, see Amazon EC2 Instance Types.

The default option of t2.micro should already be checked.  This instance type is covered within the Free Tier and offers enough compute capacity to tackle simple workloads. Click Review and Launch at the bottom of the page.

ec2-t2-micro
(click to zoom)

c. You can review the configuration, storage, tagging, and security settings that have been selected for your instance. While you have the option to customize these settings, we recommend accepting the default values for this tutorial.

Click Launch at the bottom of the page.

review-launch
(click to zoom)

d. On the next screen you will be asked to choose an existing key pair or create a new key pair. A key pair is used to securely access your Linux instance using SSH. AWS stores the public part of the key pair which is just like a house lock. You download and use the private part of the key pair which is just like a house key.

Select Create a new key pair and give it the name MyKeyPair. Next click the Download Key Pair button.

After you download the MyKeyPair key, you will want to store your key in a secure location. If you lose your key, you won’t be able to access your instance. If someone else gets access to your key, they will be able to access your instance.

Select your operating system below to see instructions on where to save your SSH key.

  • Windows Windows users:We recommend saving your key pair in your user directory in a sub-directory called .ssh (ex. C:\user\{yourusername}\.ssh\MyKeyPair.pem).Tip: You can’t use Windows Explorer to create a folder with a name that begins with a period unless you also end the folder name with a period. After you enter the name (.ssh.), the final period is removed automatically.
  • Mac / Linux

After you have stored your key pair, click Launch Instance to start your Linux instance.

Getting-Started-VM9
(click to zoom)

e. Click View Instances on the next screen to view your instances and see the status of the instance you have just started.

Getting-Started-VM8
(click to zoom)

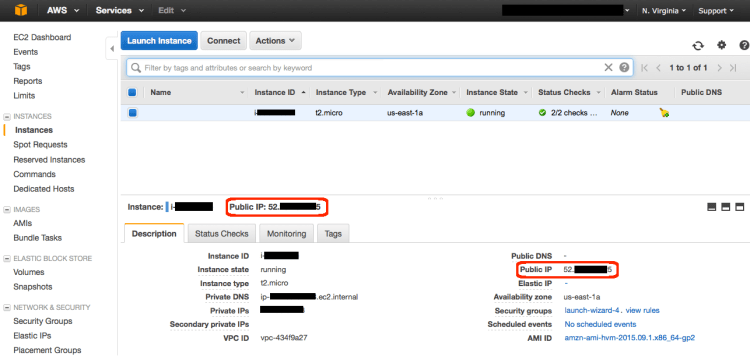

f. In a few minutes, the Instance State column on your instance will change to “running” and a Public IP address will be shown. You can refresh these Instance State columns by pressing the refresh button on the right just above the table. Copy the Public IP address of your AWS instance, so you can use it when we connect to the instance using SSH in Step 3.

Getting-Started-VM6
(click to zoom)

Step 3: Connect to your Instance


After launching your instance, it’s time to connect to it using SSH.

Windows users:  Select Windows below to see instructions for installing Git Bash which includes SSH.

Mac/Linux user: Select Mac / Linux below to see instructions for opening a terminal window.

  • Windows a. Download Git for Windows here. Run the downloaded installer accepting the default settings (this will install Git Bash as part of Git). Getting-Started-VM1 (click to zoom) b. Right click on your desktop (not on an icon or file) and select Git Bash Here to open a Git Bash command prompt. Getting-Started-VM2 (click to zoom) c. Use SSH to connect to your instance. In this case the user name is ec2-user, the SSH key is stored in the directory we saved it to in step 2 part d, and the IP address is from step 2 part f. The format is ssh -i {full path of your .pem file} ec2-user@{instance IP address}.Enter ssh -i ‘c:\Users\yourusername\.ssh\MyKeyPair.pem’ ec2-user@{IP_Address} (ex. ssh -i ‘c:\Users\adamglic\.ssh\MyKeyPair.pem’ ec2-user@52.27.212.125)You’ll see a response similar to the following:The authenticity of host ‘ec2-198-51-100-1.compute-1.amazonaws.com (10.254.142.33)’ can’t be established. RSA key fingerprint is 1f:51:ae:28:df:63:e9:d8:cf:38:5d:87:2d:7b:b8:ca:9f:f5:b1:6f. Are you sure you want to continue connecting (yes/no)?Type yes and press enter. Getting-Started-VM4 (click to zoom) You’ll see a response similar to the following:Warning: Permanently added ‘ec2-198-51-100-1.compute-1.amazonaws.com’ (RSA) to the list of known hosts.
    You should then see the welcome screen for your instance and you are now connected to your AWS Linux virtual machine in the cloud. Getting-Started-VM7 (click to zoom)
  • Mac / Linux Getting-Started-CLI-OSX1 Getting-Started-VM3 Getting-Started-VM4 Getting-Started-VM7

Step 4: Terminate Your Instance

You can easily terminate the instance from the EC2 console. In fact, it is a best practice to terminate instances you are no longer using so you don’t keep getting charged for them.


a. Back on the EC2 Console, select the box next to the instance you created.  Then click the Actions button, navigate to Instance State, and click Terminate.

launch-windows-vm-18
(click to zoom)

b. You will be asked to confirm your termination – select Yes, Terminate.

Note: This process can take several seconds to complete.  Once your instance has been terminated, the Instance State will change to terminated on your EC2 Console.
